German U-Boat Type VIIC (R/C) – Revell/Germany 1/72

Posted by Paul On May - 18 - 2009

Full radio control, Able to static dive using RCABS (Recirculating compressed air ballast system)

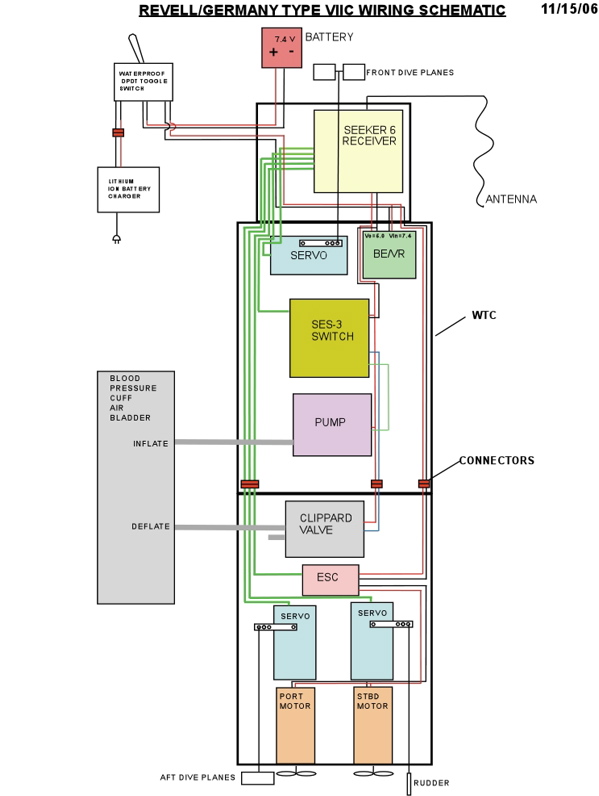

Here is the wiring schematic of the sub:

type-viic-wiring-diag-11-15-06





















There is a complete writeup on building this in the “Reviews” section of my web site – go HERE.

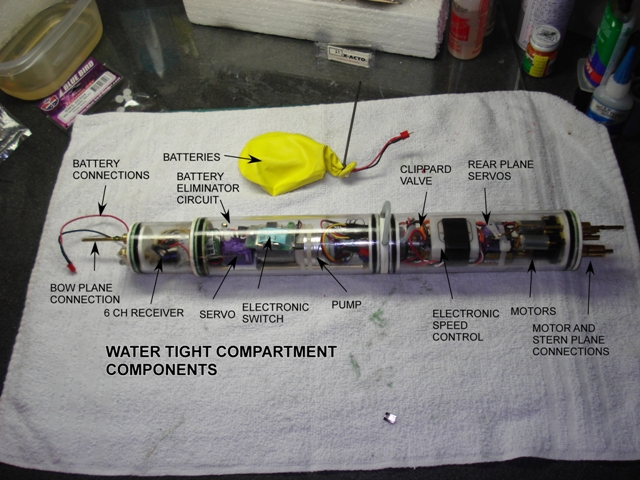

Here is a picture of the innards:

 wtc-diag

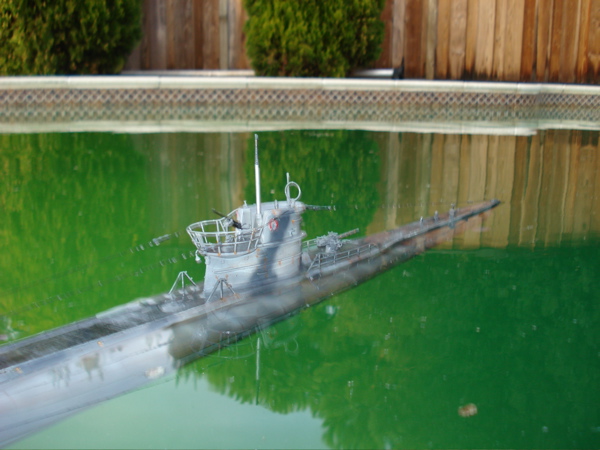

And here it is in my neighbors pool – which needs to be cleaned:

dsc01375

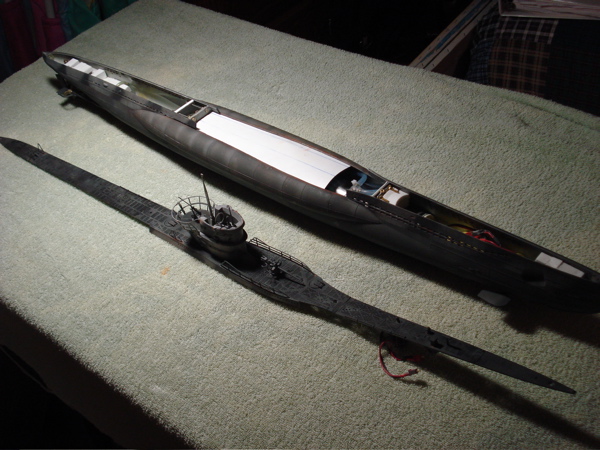

Here she is opened up – a frequent occurance – gotta check for leaks:

dsc01052

dsc02206

dsc00827

dsc01379

type-viic
